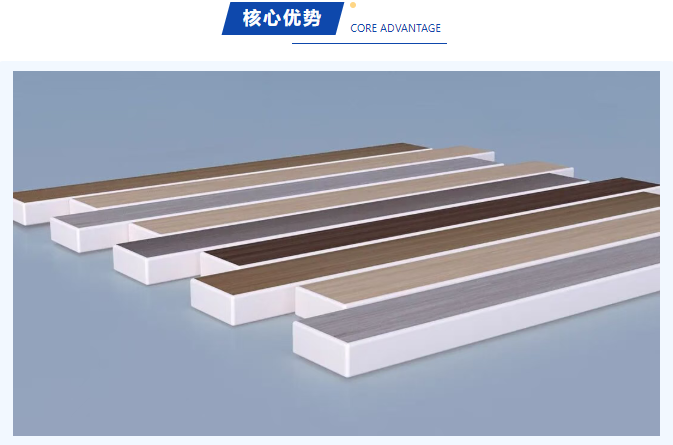

可满足120×40mm以上板件封边需求。
Can meet the requirements of 120×40mm or more plate edge sealing.

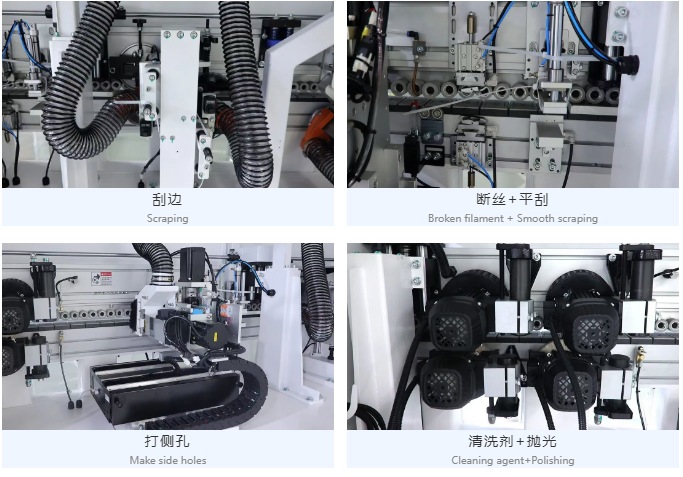

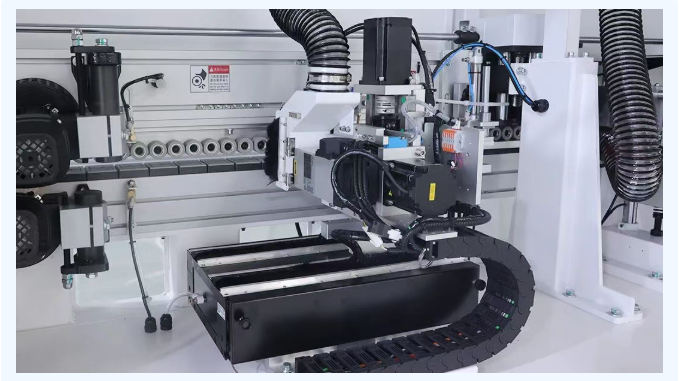

高精度侧孔装置，孔位识别精准度高，反应速度快，打孔精度高，性能稳定。
High precision side hole device, high accuracy of hole location identification, fast reaction speed, high drilling precision, stable performance.
采用加厚钢板焊接，自然时效、退火、喷砂、大型龙门铣加工一次成型等严格生产工艺，确保设备长期稳定运行。
The use of thickened steel plate welding, natural aging, annealing, sandblasting, large-scale gantry milling processing and other strict production processes, to ensure long-term stable operation of equipment.
直径37mm小轮压料和辅助压轮协同工作，确保压料过程的稳定性和准确性。
The 37mm diameter roller and the auxiliary roller work together to ensure the stability and accuracy of the pressing process.

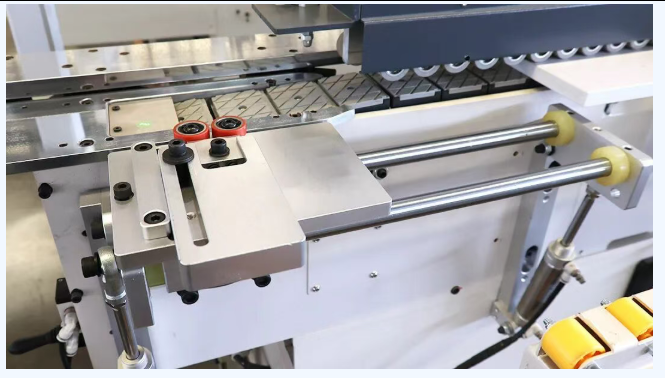

高稳定支撑结构，提高窄板加工稳定性和精度，提升生产效率。
High stability support structure, improve the stability and accuracy of narrow plate processing, improve production efficiency.

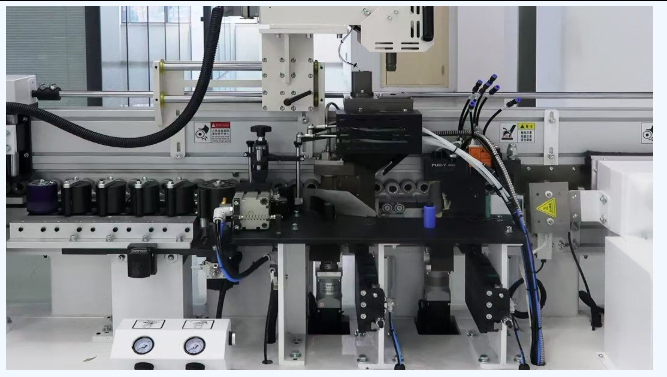

多伺服功能配置，涂胶精准控量无溢胶拖尾，伺服送带损耗低；伺服压贴压力恒定可调，粘接牢固。
Multiple servo functions, precise control of glue application without glue overflow or trailing; low servo belt wear; constant and adjustable pressure during pressing and bonding, ensuring strong and reliable adhesion.
| 机型/Models | PE-768JC-SU |
|---|---|
|
封边带厚度 Edge tape thickness |
0.4~3mm |
|
封边带宽度 Edge tape width |
12~65mm |
|
板料厚度 Panel thickness |
10~60mm |
|
板材宽度 Panel width |
≥40mm |
|
送料速度 Feeding speed |
0~23m/min |
|
工作气压 Working air pressure |
≧ 0.7Mpa |
|
总功率 Total power |
28KW |
|
吸尘口径 Dust pipe diameter |
φ100mm×6 |
|
重量 Equipment weight |
3100Kg |
|
外形尺寸 Overall size |
8500×1050×1750mm |
